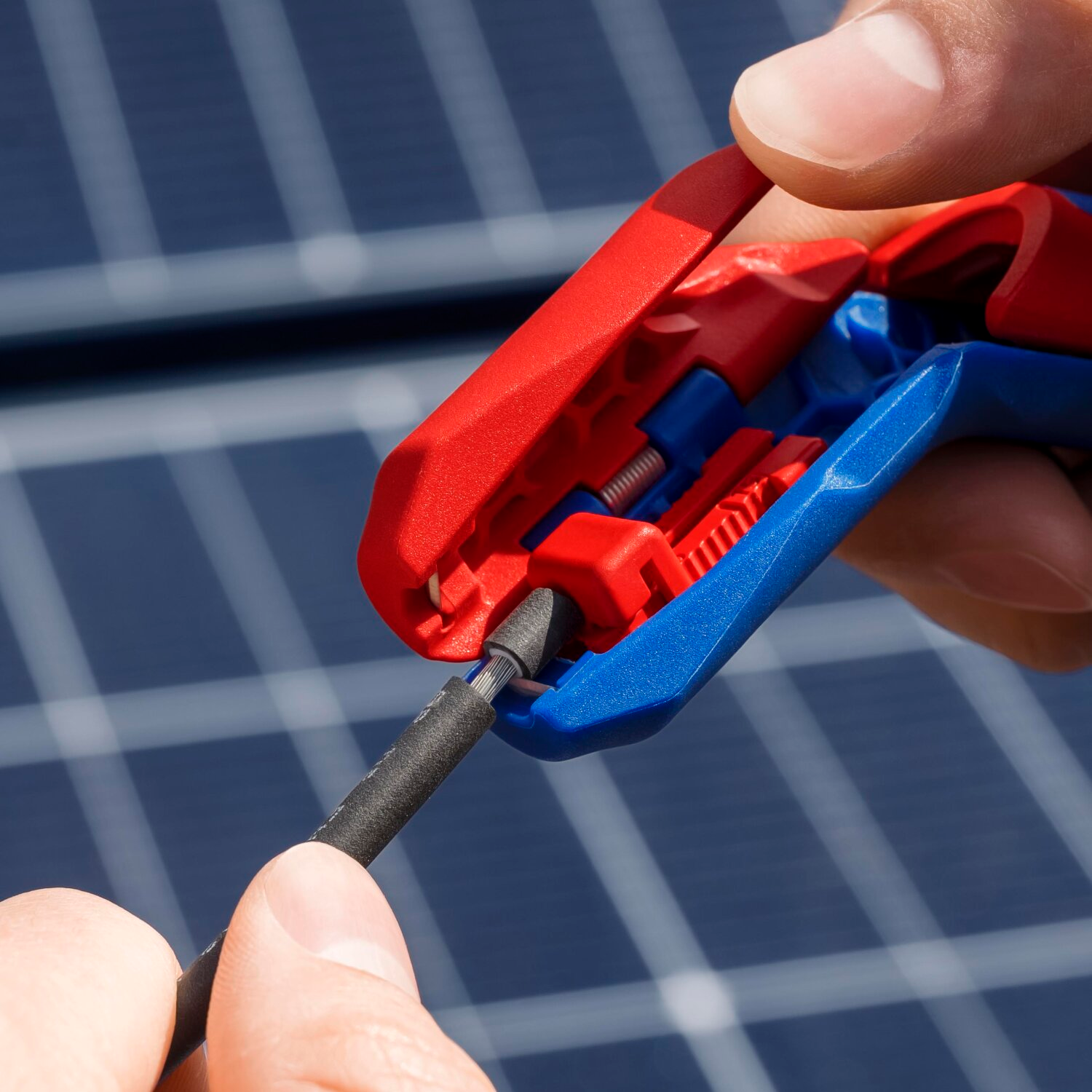

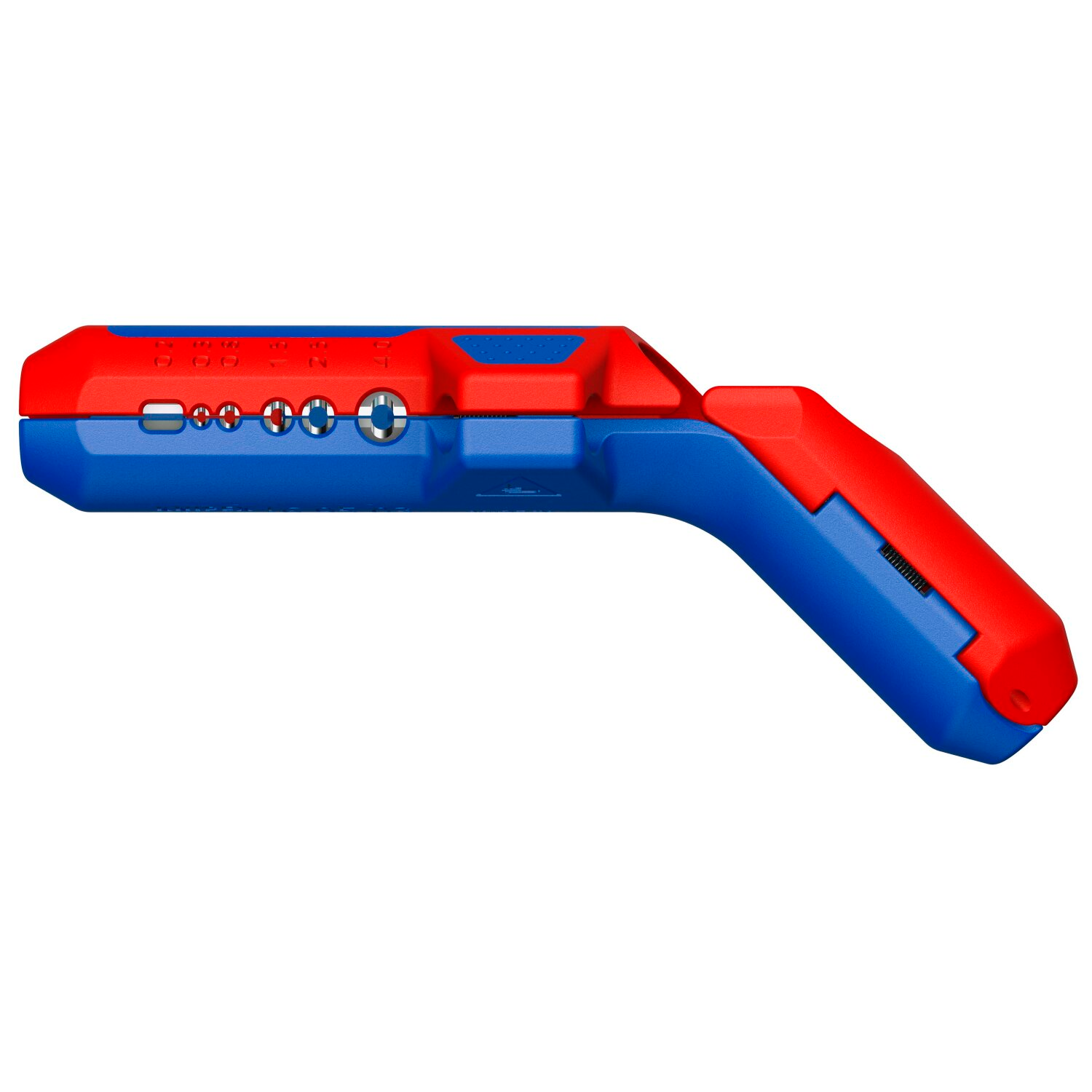

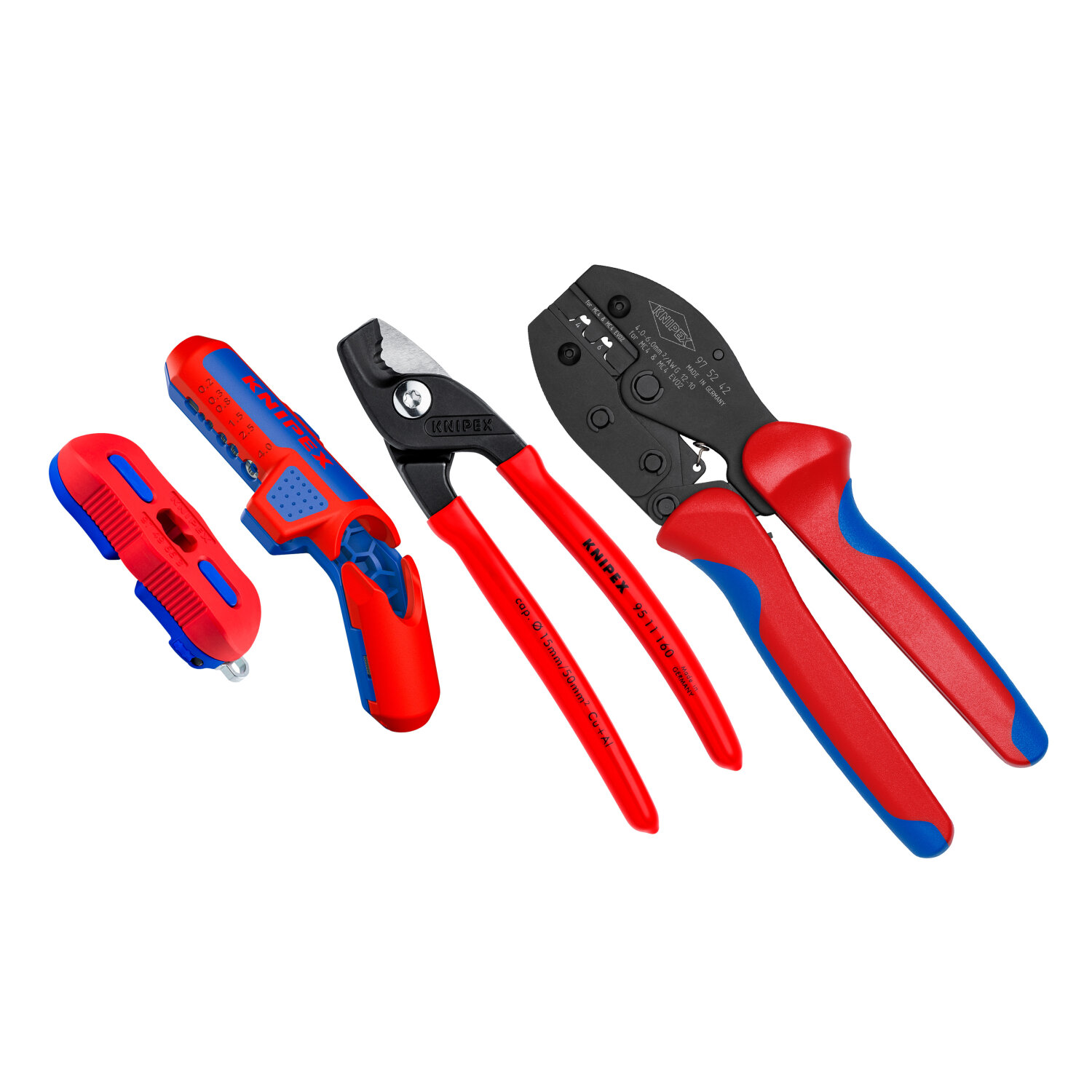

16 95 03 SB - KNIPEX ErgoStrip® PV
Specially optimized for the needs of solar installers: it can strip weather-resistant and tough PV cables for 4 (12 AWG) and 6 mm² (10 AWG)
Length stop for PV cables: adjustable from 1/4" - 3/4" for repetitive stripping lengths, suitable for all standard solar connectors

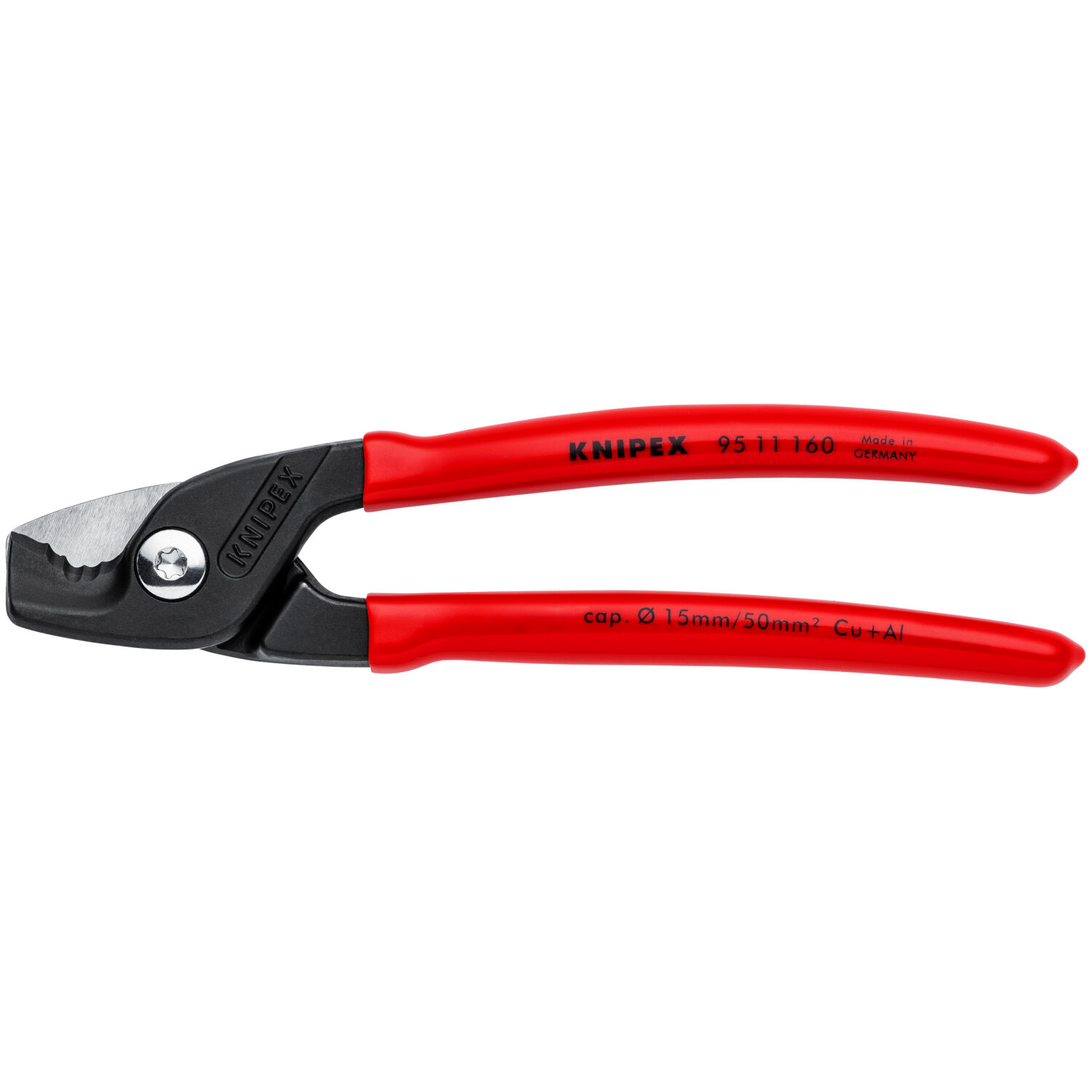

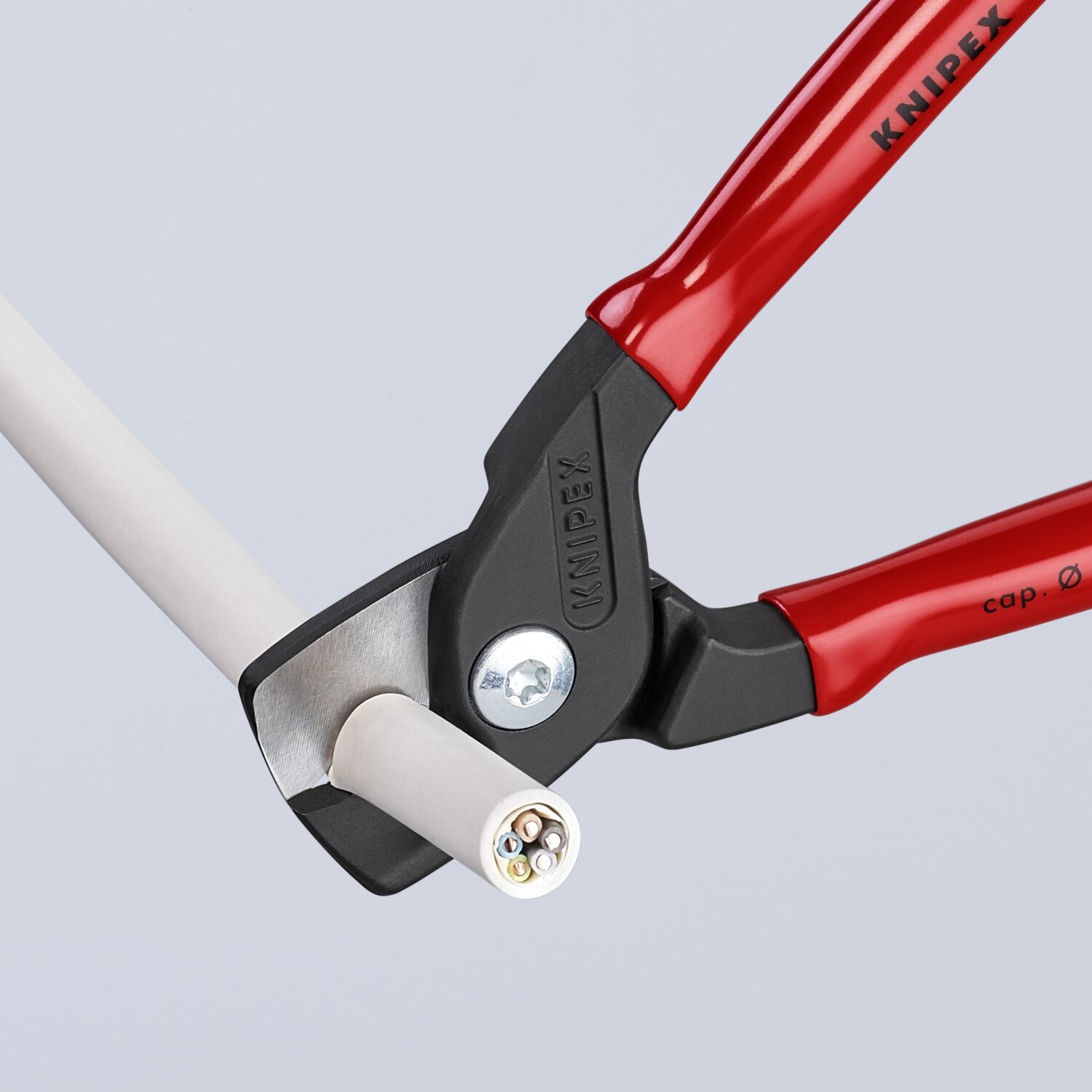

95 11 160 - 6 1/4" StepCut® Cable Shears
Small, light, strong: comfortable cutting without crushing and just 6 1/4" in length
Cuts multi-core stranded copper and aluminum cables, single and multi-stranded wire up to 1/0 AWG

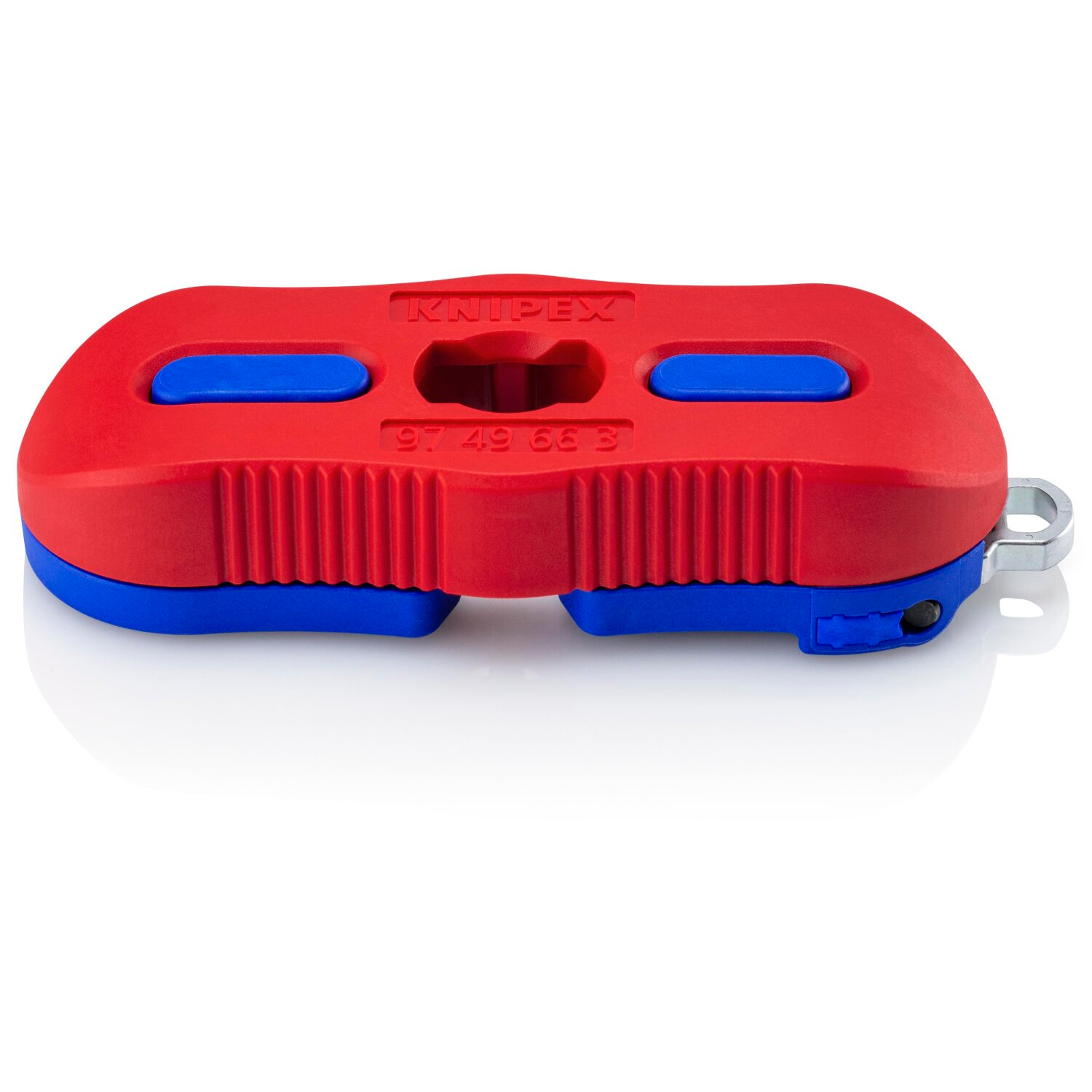

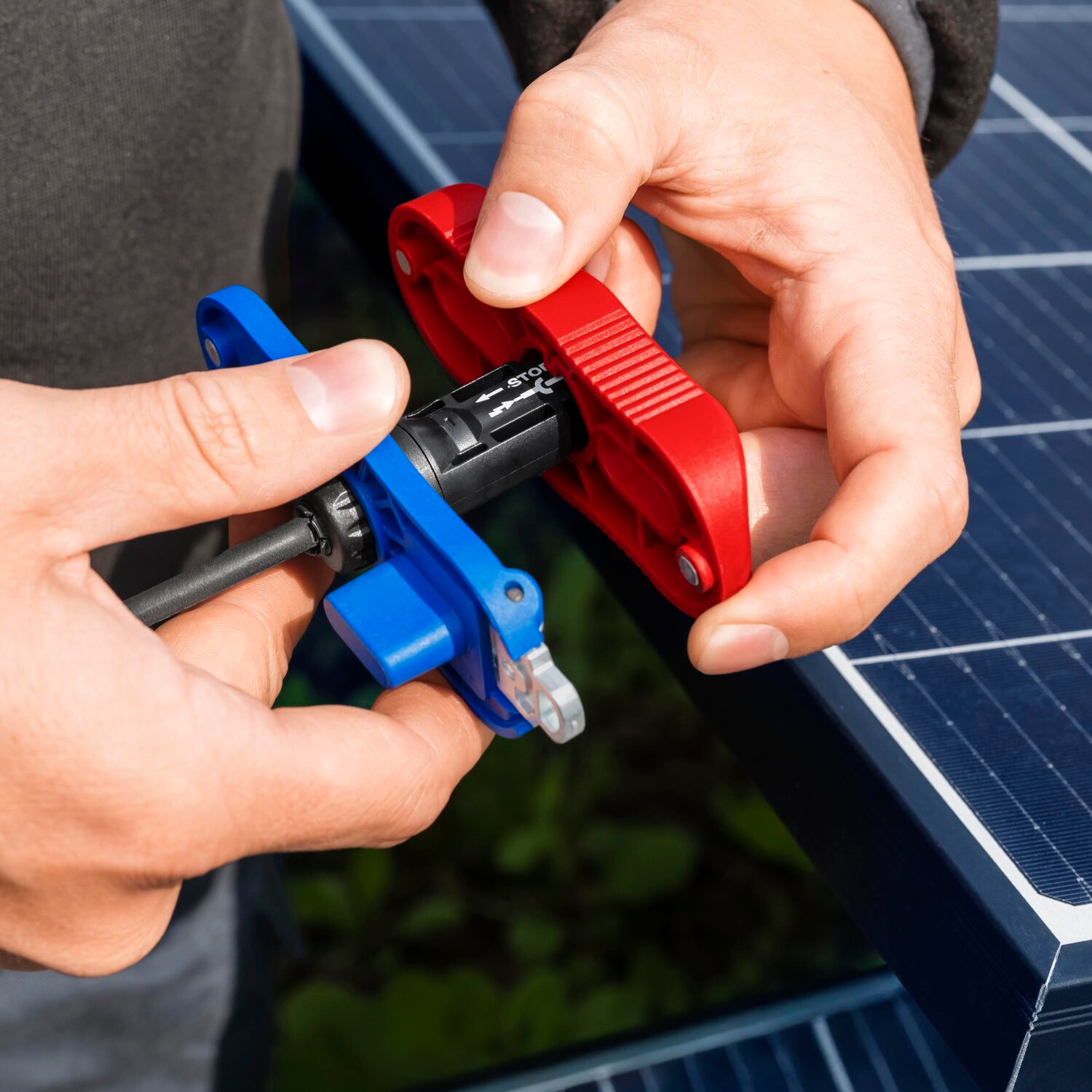

97 49 66 3 - Assembly Tool for MC4® / MC4® Evo 2
For installation, maintenance or replacement of individual cables, this set is the quick and convenient way to close and reopen MC4® / MC4® Evo 2 housings
For solar cable connectors MC4® and MC4® Evo 2

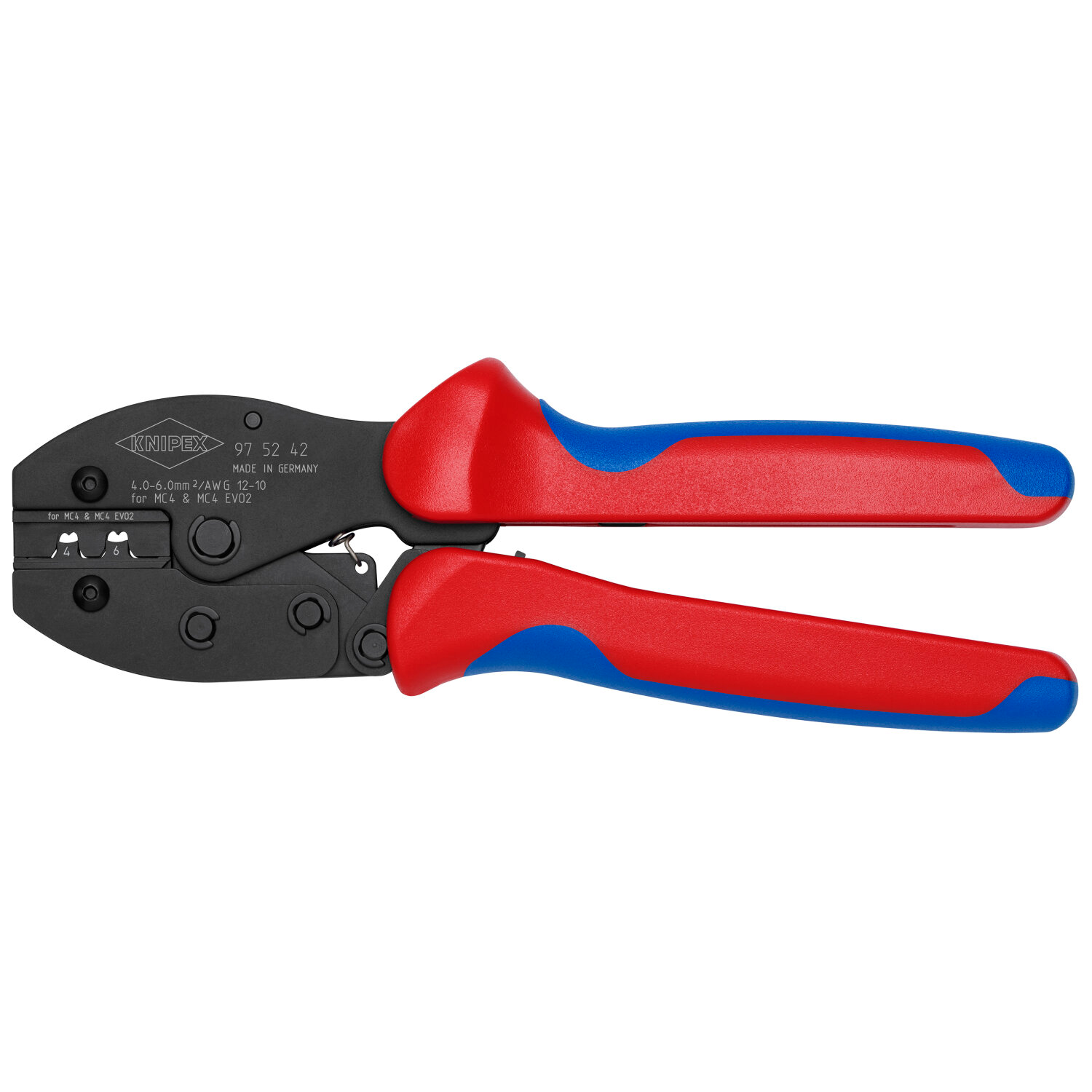

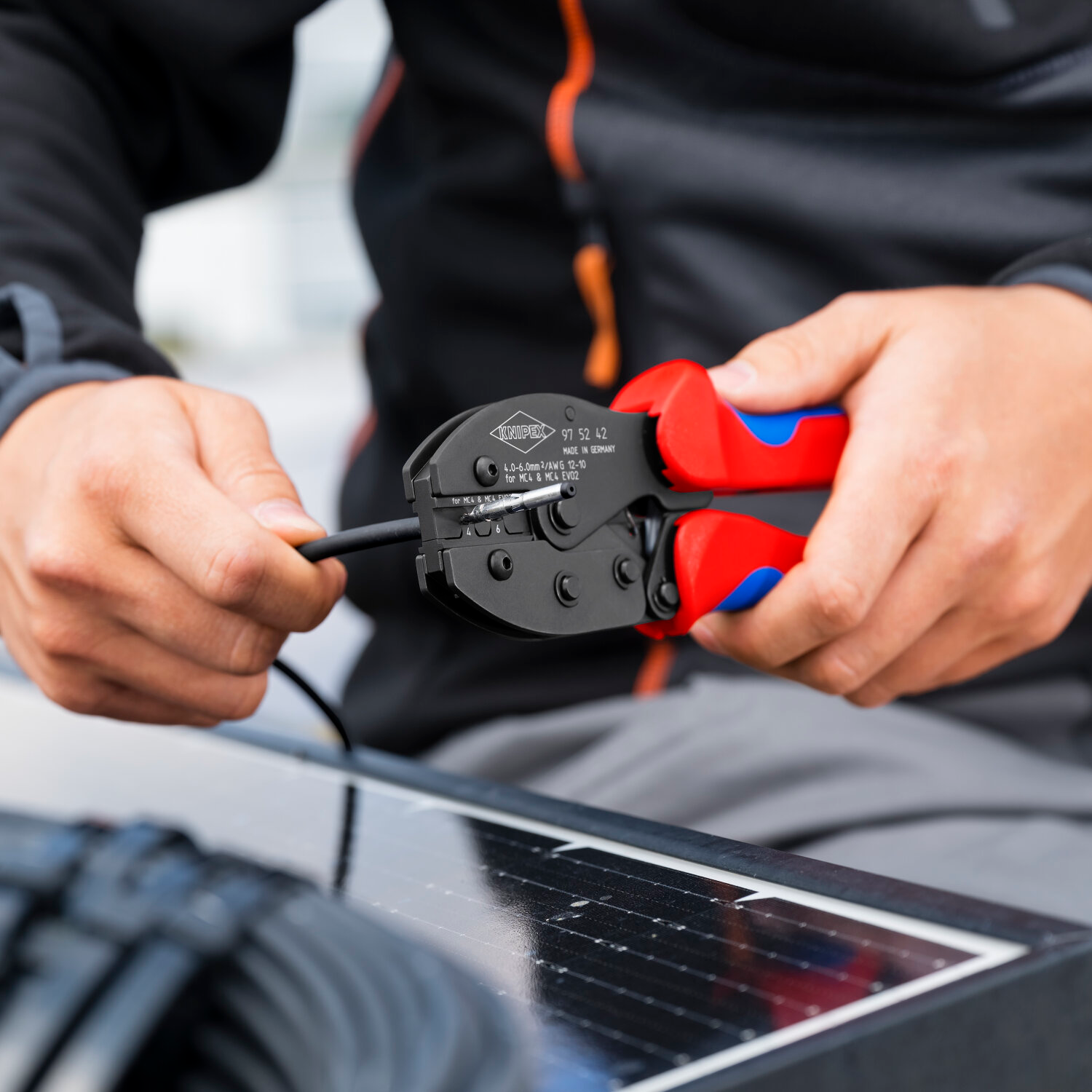

97 52 42 - 8 1/2" KNIPEX PreciForce® Crimping Pliers For MC4®/MC4® Evo 2
For tightening the housing screw connection and unlocking the plug connection
Capacity - 12 and 10 AWG (4 and 6 mm²)
Size
Crimping Profile: F Crimp
Crimping Positions:
97 52 42: 2
Joint Type: Bolted
Cutting Edge: Shear
Cable Type: PV Cables
Cable Cutting Capacity:
95 11 160: 9/16" (1/0 AWG)
Crimping Capacity:
97 52 42: 12 and 10 AWG (4 and 6 mm²)
Stripping Capacity:
16 95 03 SB: 4.0 and 6.0 mm²
16 95 03 SB: 12 and 10 AWG
Grip Type
Multi-Component & Plastic Coating
