Hazet 179NW-7/230 Mobile Work Bench with 230 Tools
- 179NW-7/230
- Hazet
- Workstations & Stands
Downloads
No files available.
Key points
- 1 heavy duty drawer, loading capacity 40 kg, 166 mm high
- 6 drawers, loading capacity 25 kg, 81 mm high
- 2 work surfaces in the storage compartment, top: 15 kg / bottom: 35 kg
- Total loading capacity (dynamic): 750 kg
- Loading capacity (static): 1000 kg
Description
- More storage space than preceding model
- 6 x flat drawers and 1 x high heavy-duty drawer
- Lockable storage compartment with 2 storage surfaces

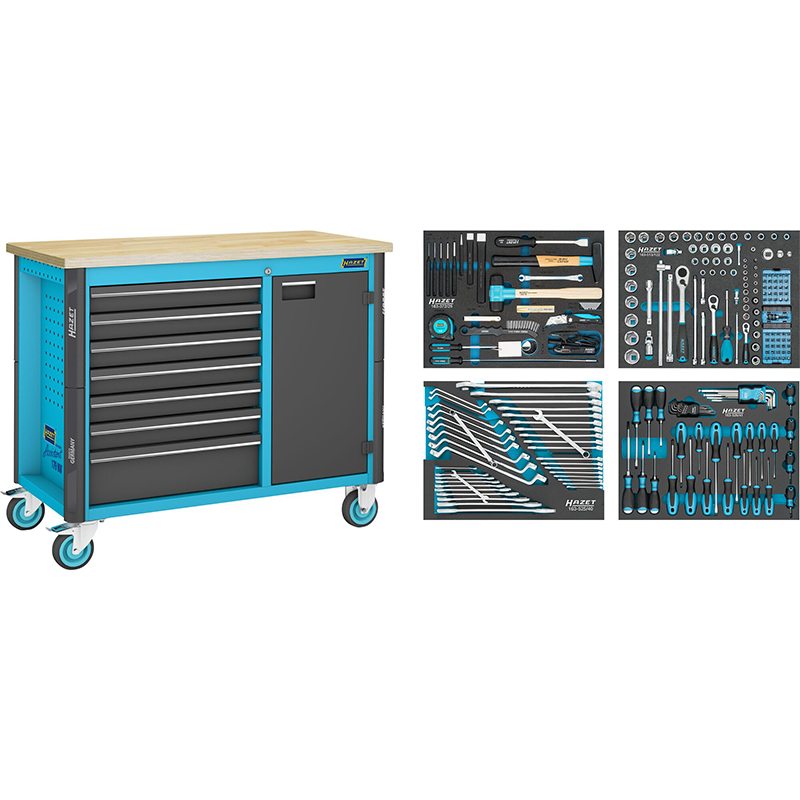

- Complete with 230-piece tool assortment in Safety-Insert-System soft foam insert
- 30 mm wood multiplex birch work surface, oiled, replaceable
- Including 9-fold adjustable intermediary tray and fixed mounted door

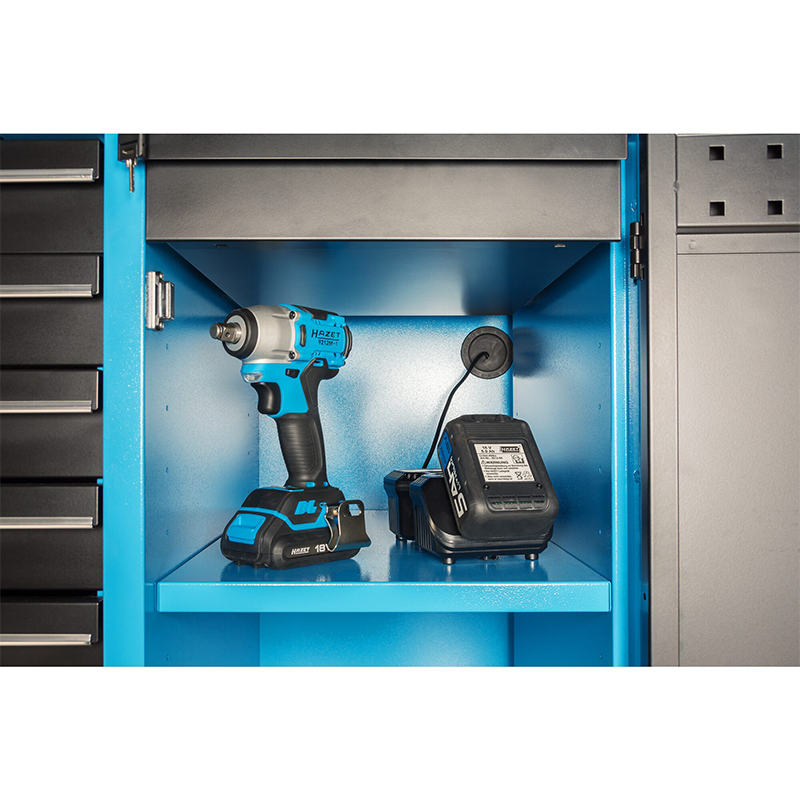

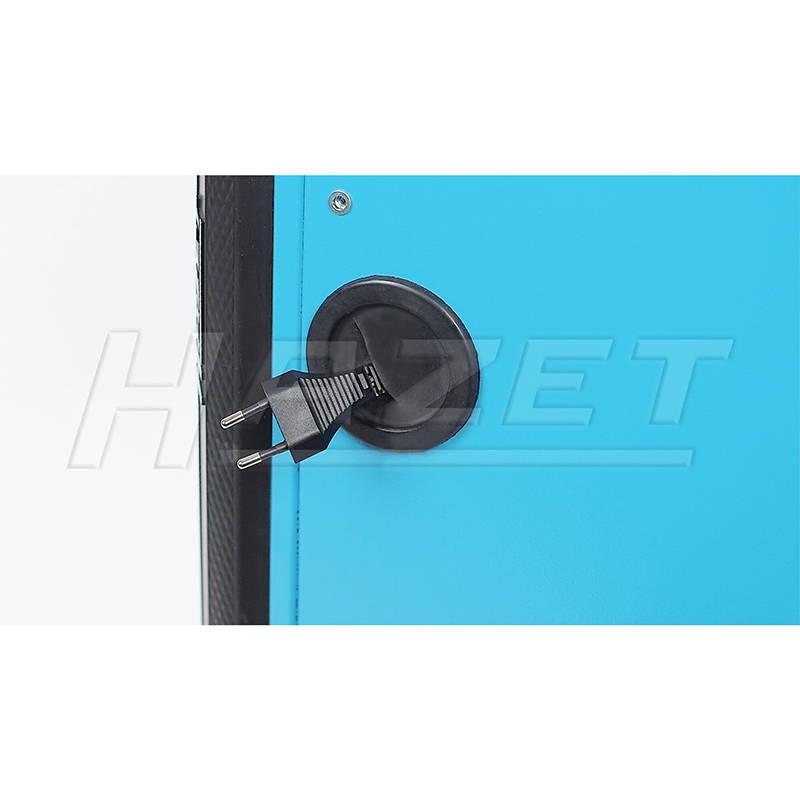

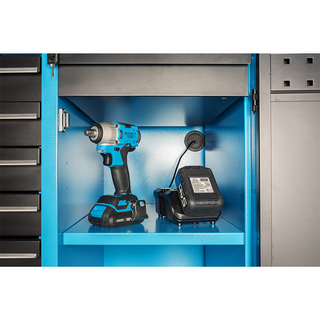

- Cable duct on rear panel allows battery devices to be charged when the door is closed, for instance
- Complete welded construction of the entire body for tough daily workshop use
- Additional rectangular perforation for tool holder, e.g. HAZET 112-230
- Optimized, yielding edge protection on all four corners with real impact protection thanks to internal damping concept

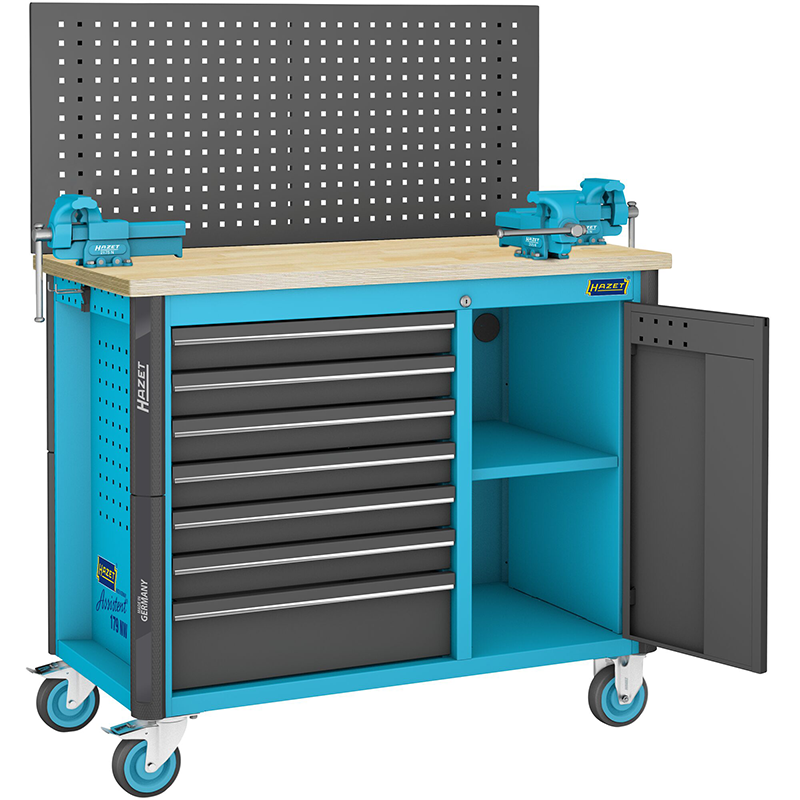

- Flexible vice assembly (front, right, left) e.g. HAZET 2175 N according to drilling template specification
- Chassis:
- Large wheels with high loading capacity (∅ 125 mm) with precision ball-bearing and dual ball race in the swivel bearing, easy maneuverability even under high dynamic load
- 2 swivel castors with double stop function: fixed castor prevents inadvertent rolling of the trolley,
- fixed swivel bearing prevents the castors from swiveling, e.g. on an inclined surface
- Protective ring prevents dirt and threads from getting in
- Elastic tires enable smooth movement
- Locking concept:
- Mutual drawer locking for minimum tilting risk
- Lock located in the center (central locking and cylinder lock) closes the door and drawers at the same time
- Only one key for locking the door and drawer at the same time (scope of delivery: 2 keys)
- 180° rotation, prevents the key from breaking off
- Slides out 100% by means of ball-bearing, self-closing telescopic rails
