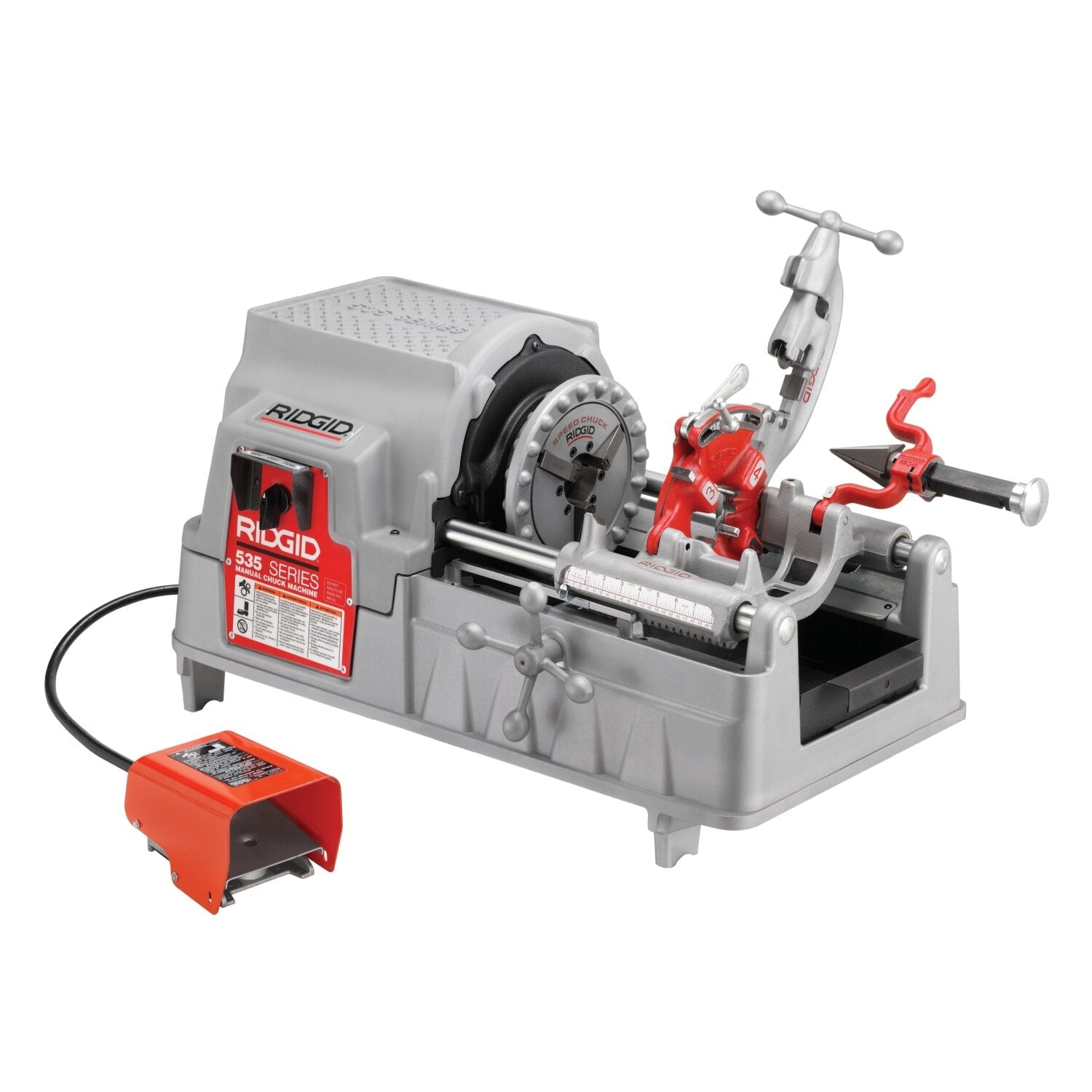

Ridgid 29918 Model 535-400 3-Phase Manual Chunk Pipe Threading Machine Only, 35/70 RPM, 400V, 3.5/5.1A
by
Ridgid
About this item
Ridgid 29918 Model 535-400 3-Phase Manual Chunk Pipe Threading Machine Only, 35/70 RPM, 400V, 3.5/5.1A
- 29918
- Ridgid
- Pipe Threaders
Features
Downloads
No files available.
Key points
- Speed hammer-type chuck with rocker-action jaws secures pipe tightly
- Large chip tray and 1.75 gallon oil tray allow for longer uninterrupted threading
- Suitable for use with geared threaders (Models 141 and 161, sold separately) for threading large diameter pipe
- Uses Model 816/817 semi-automatic, Model 815A self-opening, or Model 811A quick-opening die heads - Die head and dies all sold separately
- High clearance carriage increases workpiece maneuverability to make threading easier
Description
The RIDGID 535-400 (29918) 3-Phase Manual Chuck Pipe Threading Machine Only, 35/70 RPM, 1.8/2.3 HP, 400V, 3.5/5.1 A is an electric motor-driven machine that centers and chucks pipe, conduit and bolt stock, and rotates it while cutting, reaming and threading operations are performed (requires dies and die head, sold separately). An integral oiling system is provided to flood the work with thread cutting oil during the threading operation. With proper optional equipment, the Model 535 Threading Machine can be used to thread larger pipe, short or close nipples, or be used for roll grooving.The 400V three-phase machine can be operated at 35 or 70 RPM. This is controlled by the machine switch, which is marked 2-1-0-1-2: 0 is the OFF position, 1 is 35 rpm (Forward and Reverse), and 2 is 70 rpm (Forward and Reverse).
The 535-400 (29918) 3-Phase Manual Chuck Pipe Threading Machine maintains the ruggedness of the industry workhorse while adding the features that make the threading operation more productive. A large chip tray and oil reservoir make the Model 535 ideal for longer uninterrupted threading. The Model 535 is designed around maximum uptime with the upgrades that matter most to the pipe working professional.
