About this item

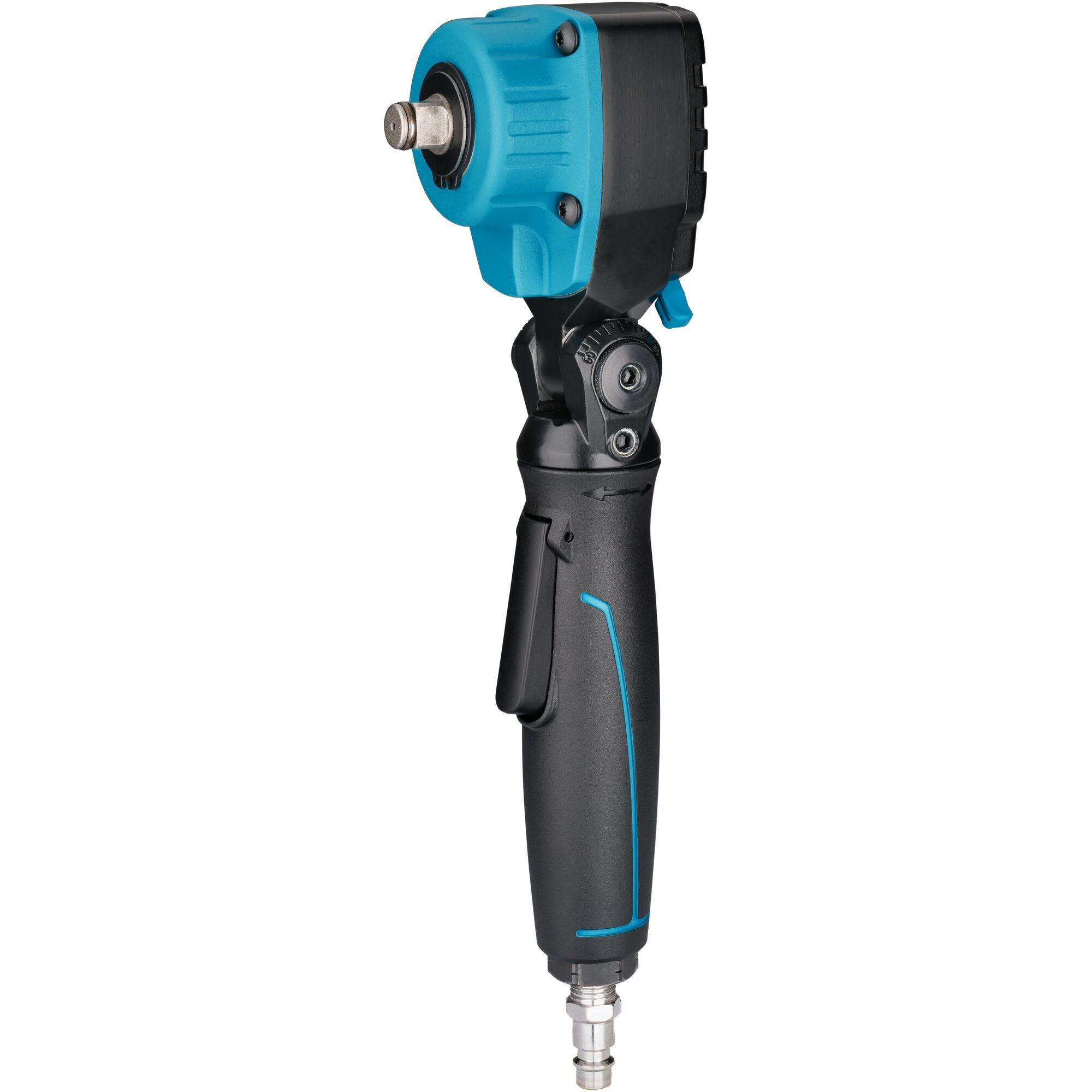

Hazet 9012ATT Twin Turbo impact wrench
- 9012ATT
- Hazet
- Impact Drivers
Features
Downloads
No files available.
Key points
- Maximum loosening torque: 550 Nm
- Exhaust air is guided through the handle downwards
- Reduced vibrations
- Easy handling
- Handle / trigger adjustable around its own axis for optimal handling allows operation in any position
Description
Maximum loosening torque: 550 Nm. Exhaust air is guided through the handle downwards. Reduced vibrations. Easy handling. Handle / trigger adjustable around its own axis for optimal handling allows operation in any position. Swivel mechanism for extended application range guarantees best accessibility. Short, compact, angled design – only 70 mm. One-hand operation for left- and right-handed users. Powerful twin hammer mechanism. Air connection inlet: Inside thread 12.91 mm (1/4″). Coupler plug: Nominal size 7.2 (included). Recommended torque: 450 Nm. Hose diameter (recommended): 10 mm. Working pressure (bar): 6.3. Sound power level: 101.1 db(A) Lp W. Vibration acceleration: 4.89 m/s2. Loosening torque (max) determined with screw size M: 16. Forward and reverse: single-stage (right/left). Cold insulated handle. Output: Square, solid 12.5 mm (1/2 inch). Dimensions / length: 85 mm x 64 mm x 227 mm. Net weight: 1.3 kg. Tightening torque max.: 500 Nm. Maximum loosening torque: 550 Nm. Sound pressure level: 90.1 dB(A) Lp A. Revolutions per minute: 8000. Air requirement: 113 l/min (1.9 l/sec).
