About this item

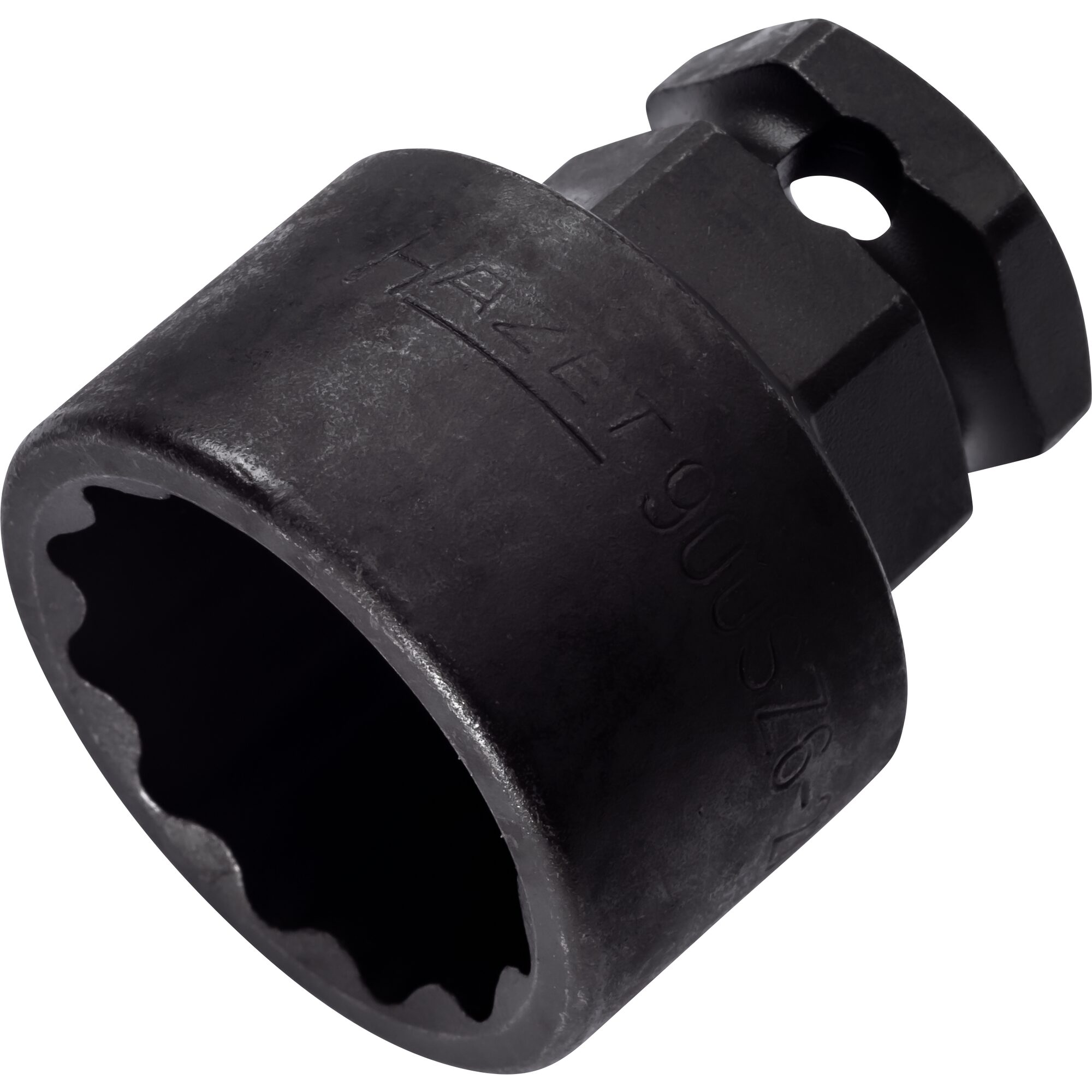

Hazet 900SZ6-24 Impact socket ∙ 12-point
- 900SZ6-24
- Hazet
- Impact Drivers
Features
Downloads
No files available.
Key points
- Operation via impact adapter e.g. HAZET 1003S-1 or nut-driver Ä 24 mm enables high force transmission thanks to optimal 20 mm = 3/4″ drive
- Hexagon on the socket wrench insert enables adaptation to 20 mm = 3/4" drive
- Short design
- With borehole for locking pin or safety spring and grove for O-ring
- Surface: phosphatized, oiled
Description
Operation via impact adapter e.g. HAZET 1003S-1 or nut-driver Ä 24 mm enables high force transmission thanks to optimal 20 mm = 3/4″ drive. Hexagon on the socket wrench insert enables adaptation to 20 mm = 3/4" drive. Short design. With borehole for locking pin or safety spring and grove for O-ring. Surface: phosphatized, oiled. DIN 3129, ISO 2725-2. Made in Germany. Drive: Square, hollow 12.5 mm (1/2 inch), Outside hexagon 24 mm. Output: Outside 12-point traction profile. Wrench size: 24 mm. Dimensions / length: 44 mm. Diameter d1 (output side): 36 mm. Diameter d2 (drive side): 27 mm. For impact operation.
