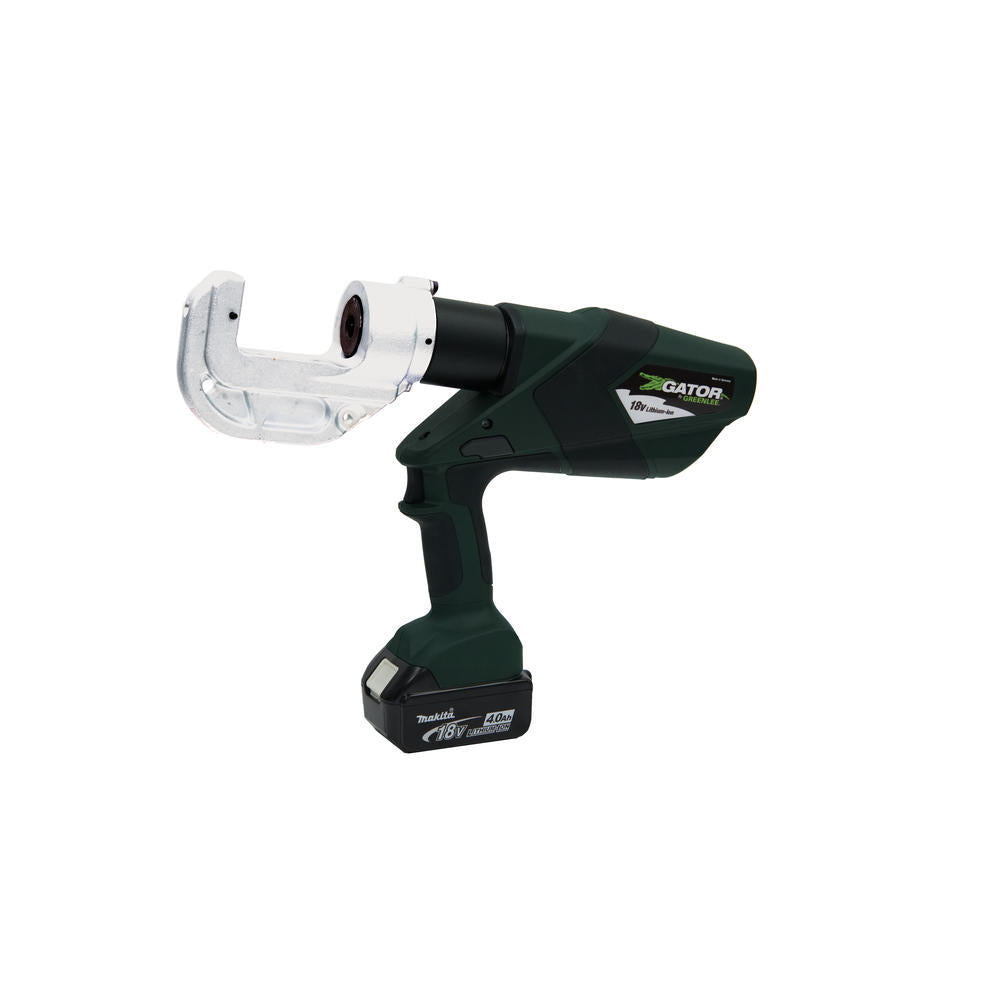

Greenlee EK1240KLX22 12 Ton Crimper Kearney, Li-Ion, Standard, 230V

Greenlee

EK1240KLX22

Die style crimper

12 Ton Crimping

Retail

Germany

783310610489

Proposition 65 Warning

NCNR - Non-Cancellable / Non-Returnable

16.25" (413 mm)

Wire: 8 AWG - 750 Kcmil Cu & Al
Opening: 1.65" (42 mm)

Pistol Style with over molded rubber grip

Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
LED light provides the operator with the battery charge and tool maintenance status
Two-stage hydraulic system provides fast advance and power speeds, saving time
Forward handle position improves tool balance
One trigger controls all tool functions
Crimping head rotates 350°
Tools automatically retract when the crimping cycle is complete
Overmolded tacky grip areas make gripping the tool easier and more comfortable
LED work light illuminates dark work areas
Greenlee battery-powered crimping tools now use bio-degradable oil
Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
Three crimping head choices: EK1230L with 1.20 IN (30mm) opening uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry "U" style crimping dies, EK1240L with 1.65 IN (42mm) opening uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry "U" style crimping dies, EK1240KL uses Kearney PH2 style crimping dies
Covered head models have two layers of PVC that total approximately 3/16 IN (4.8 mm) thick. The outer layer is black and the inner layer is red.
U.S. Patents #6,206,663 and #6,065,326
